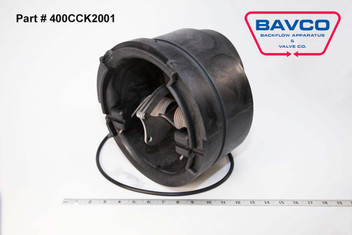

AMES M400 8-10" RUBBER REPAIR KIT SILICONE
This is a reduced pressure principle assembly. This model was produced under the Hunter name from 2000-2002. In 2002 Watts bought the Hunter models and began production as the Ames M400. The "M" designation refers to Ames Maxim brand name. The body is constructed of stainless steel tubing. To access the check components a movable sleeve is mounted over the access cover. On the 2 1/2"-4" size the sleeve slides over the body to access the check components. On the 6"-10" sizes the sleeve is attached by two grooved couplings. The check components are modular and constructed of noryl plastic. The check utilizes a torsion spring which is contained when the check module is removed from the body. The check spring must be extended and controlled with a pin or screwdriver to replace the check disc. The check disc may be either an EPDM or silicone rubber. The body length dimensions may be up to 1" shorter than shown in the dimension chart on versions produced in 2003 or earlier. The body dimension does not change the repair parts inside. The relief valve body attaches to the outside of the check body and is pressurized with an external RV sensing line. The RV spring is contained when the cover is removed. Spring tension must be released for a proper repair.
- Model Series:
- M400 / M500 2 1/2" - 10"
- Packing Slip Description:
- AMES M400 8-10"RBR RPR KIT SIL
- Watts Water Technologies
